5R110W Transmission

The 5R110W transmission also known as "TorqShift" was first introduced as a diesel automatic transmission in 2003 behind the Ford 6.0L Power Stroke diesel engine and later paired with the 6.4L Power Stroke in 2008. While the 5R110W transmission may be known as a five-speed, it contains six forward gears. The shorter 4th gear is only used in temperatures below 5 degrees Fahrenheit to increase engine speeds, while the 5th gear is used in temperatures above 5 degrees Fahrenheit. Raybestos Powertrain offers 5R110W GPZ clutch plates and Torqkits to increase performance and durability in diesel work truck and high-stress driven applications.

Transmission Specs

5-Speed

2003-2010

Gear Ratios: 1st - 3.11, 2nd - 2.20, 3rd - 1.54, 4th - 1.09, 5th - 1, 6th - .71, Reverse - 2.88

View Tech Resources >>

Exploded View >>

5R110W Transmission Clutch Packs

5R110W TorqShift GPZ Torqkit Clutch Pack

FORD 5R110W TorqShift

2003-2004

Complete Unit Torqkit Clutch Pack Module

Contents:

1 Overdrive Torqkit GPZ, 1 Low Reverse Maxpak, 1 Coast Maxpak, 1 Direct Torqkit GPZ, 1 Intermediate Torqkit GPZ, 1 Forward Torqkit GPZ

RCPTK-5110

5R110W TorqShift GPZ Torqkit Clutch Pack

FORD 5R110W TorqShift

2005-2007

Complete Unit Torqkit Clutch Pack Module

Contents:

1 Forward Torqkit GPZ, 1 Intermediate Torqkit GPZ, 1 Overdrive Torqkit GPZ, 1 Low Reverse Maxpak, 1 Coast Maxpak, 1 Direct Torqkit GPZ

RCPTK-5111

5R110W TorqShift Forward/Direct GPZ Torqkit Clutch Pack

FORD 5R110W TorqShift

2003-ON

Forward/Direct GPZ Torqkit Clutch Pack Module

Contents:

1 Snap Ring, 5 Forward/Direct Kolene®, 1 Direct, 1 Forward/Direct, 6 Direct GPZ, 1 Direct Piston

RTK-5111

5R110W TorqShift Forward GPZ Torqkit Clutch Pack

FORD 5R110W TorqShift

2003-2004

Forward GPZ Torqkit Clutch Pack Module

Contents:

5 Forward ID Spline GPZ, 5 Forward/Direct

RTK-5112

5R110W TorqShift Intermediate GPZ Torqkit Clutch Pack

FORD 5R110W TorqShift

2003-2004

Intermediate GPZ Torqkit Clutch Pack Module

Contents:

5 Intermediate GPZ, 5 Intermediate Steel, 1 Intermediate Backing Plate

RTK-5113

5R110W TorqShift Overdrive GPZ Torqkit Clutch Pack

FORD 5R110W TorqShift

2003-ON

Overdrive GPZ Torqkit Clutch Pack Module

Contents:

5 Overdrive GPZ, 4 Overdrive Kolene®, 2 Overdrive Steel, 1 Overdrive Piston

RTK-5114

5R110W TorqShift Forward GPZ Torqkit Clutch Pack

FORD 5R110W TorqShift

2005-2010

Forward GPZ Torqkit Clutch Pack Module

Contents:

5 Forward ID Spline GPZ, 5 Forward Kolene®

RTK-5122

5R110W TorqShift Intermediate GPZ Torqkit Clutch Pack

FORD 5R110W TorqShift

2005-ON

Intermediate GPZ Torqkit Clutch Pack Module

Contents:

5 Intermediate GPZ, 5 Intermediate, 1 Intermediate Backing Plate

RTK-5123

5R110W TorqShift Coast Coast Stage-1™ MaxPak Clutch Pack

FORD 5R110W TorqShift Coast

2003-ON

Coast Stage-1™ MaxPak Clutch Pack Module

Contents:

3 Coast Stage-1™, 3 Coast Kolene® Steel

RMAX-07

5R110W TorqShift Low, Reverse Low/Reverse Stage-1™ MaxPak Clutch Pack

FORD 5R110W TorqShift Low, Reverse

2003-2007

Low/Reverse Stage-1™ MaxPak Clutch Pack Module

Contents:

6 Low/Reverse Stage-1™, 6 Low/Reverse Kolene® Steel

RMAX-06

5R110W TorqShift GPZ & Stage-1™ Friction Clutch Pack

FORD 5R110W TorqShift

2005-ON

GPZ & Stage-1™ Friction Clutch Pack Module

Contents:

RGPZ-5111 features 3 - GPZ170 Overdrive GPZ, 4 - GPZ160 Intermediate GPZ, 6 - R600835 Low/Reverse, Stage-1™ Red, 4 - GPZ155 Forward GPZ, 4 -GPZ165 Direct GPZ, 3 - R600810 Coast Stage-1™ Red

RGPZ-5110

5R110W TorqShift GPZ & Stage-1 Friction Clutch Pack w/3 Int

FORD 5R110W TorqShift

2003-2004

GPZ Friction Clutch Pack Module

Contents:

RGPZ-5111 features 3 - GPZ170 Overdrive GPZ, 3 - GPZ162 Intermediate GPZ, 6 - R600835 Low/Reverse, Stage-1™ Red, 4 - GPZ158 Forward GPZ, 4 -GPZ165 Direct GPZ, 3 - R600810 Coast Stage-1™ Red

RGPZ-5111

5R110W TorqShift Stage-1™ Friction Clutch Pack

FORD 5R110W TorqShift

2003-2004

Stage-1™ Friction Clutch Pack Module

Contents:

3 Overdrive Stage-1™ Red, 3 Intermediate Stage-1™ Red, 6 Low/Reverse Stage-1™ Red, 3 Coast Stage-1™ Red, 4 Direct Stage-1™, 4 Coaast Stage-1™

RCPS-165

5R110W TorqShift Stage-1™ Friction Clutch Pack

FORD 5R110W TorqShift

2005-ON

Stage-1™ Friction Clutch Pack Module

Contents:

3 Overdrive Stage-1™ Red, 4 Intermediate Stage-1™ Red, 6 Low/Reverse Stage-1™ Red, 3 Coast Stage-1™ Red, 4 Forward Stage-1™ Red 4 Direct Stage-1™ Red

RCPS-218

5R110W TorqShift HT Friction Clutch Pack

FORD 5R110W TorqShift

2003-2005

(HT) Hybrid Technology Friction Clutch Pack Module

Contents:

3 Overdrive High Energy, 3 Intermediate HT, 6 Low/Reverse Tan, 3 Coast HT, 4 Forward HT, 4 Direct HT

RHT96-165

5R110W TorqShift HT Friction Clutch Pack

FORD 5R110W TorqShift

2005-ON

(HT) Hybrid Technology Friction Clutch Pack Module

Contents:

3 Overdrive High Energy, 3 Intermediate HT, 6 Low/Reverse Tan, 3 Coast HT, 4 Forward HT, 4 Direct HT

RHT96-180

5R110W TorqShift HT Friction Clutch Pack

FORD 5R110W TorqShift

2005-ON

(HT) Hybrid Technology Friction Clutch Pack Module

Contents:

3 Coast HT, 4 Forward HT, 4 Direct HT, 3 Overdrive High Energy, 4 Intermediate HT, 6 Low/Reverse Tan

RHT96-218

5R110W TorqShift HT Friction Clutch Pack

FORD 5R110W TorqShift

2005-ON

(HT) Hybrid Technology Friction Clutch Pack Module

Contents:

3 Intermediate HT, 4 Forward HT

RHT96-375

5R110W TorqShift Steel Clutch Pack

FORD 5R110W TorqShift

2003-2004

Steel Clutch Pack Module

Contents:

3 Overdrive, 3 Intermediate (Front Apply), 6 Reverse, 8 Direct, 3 Coast

000405

5R110W TorqShift Steel Clutch Pack

FORD 5R110W TorqShift

2005-ON

Steel Clutch Pack Module

Contents:

4 Forward, 4 Direct, 3 Overdrive, 6 Reverse, 4 Intermediate, 3 Coast

000683

5R110W TorqShift Kolene® Steel Clutch Pack Module

FORD 5R110W TorqShift

2005-ON

Kolene® Steel Clutch Pack Module

Contents:

3 Overdrive, Kolene® High Performacne, 6 Reverse Kolene® High Performance, 3 Intermediate, Kolene® High Performance, 3 Coast, Kolene® High Peformance, 4 Forward, Kolene® High Performance, 4 Forward, Direct Kolene® High Performance

STMFORD04K

5R110W Transmission Filter

5R110W TorqShift Transmission Filter

FORD 5R110W TorqShift

2008-ON

Transmission Filter

515196

5R110W TorqShift Transmission Filter

FORD 5R110W TorqShift

2008-ON

Transmission Filter

515197

5R110W TorqShift Transmission Filter

FORD 5R110W TorqShift

2003-2007

Transmission Filter

515574

5R110W TorqShift Transmission Filter

FORD 5R110W TorqShift

2003-ON

Transmission Filter

515577

5R110W Transmission Filter Kit

2008-ON

Shift-Pro Automatic Transmission Filter Kit

997196

5R110W Transmission Filter Kit

2003-ON

Shift-Pro Automatic Transmission Filter Kit

997577

5R110W Transmission Clutch Plates

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2005-ON

Forward GPZ

.078/1.98

GPZ155

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2003-2004

Forward GPZ

.077/1.96

GPZ158

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2005-ON

Intermediate GPZ

.078/1.98

GPZ160

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Intermediate GPZ

.078/1.98

GPZ162

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Direct GPZ

.077/1.96

GPZ165

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Direct GPZ (.063")

.063/1.60

GPZ166

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Overdrive GPZ

.074/1.88

GPZ170

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2005-2010

Forward Single Sided, ID Spline GPZ

.060/1.52

GPZ265

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2003-2004

Forward Single Sided, ID Spline GPZ

.060/1.52

GPZ270

5R110W TorqShift GPZ Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Low, Reverse GPZ

.076/1.93

GPZ540

C6, 5R110W TorqShift OE Replacement Friction Clutch Plate

FORD C6, 5R110W TorqShift

1989-ON

Low, Reverse

.076/1.93

R560715

5R110W TorqShift High Energy Friction Clutch Plate

FORD 5R110W TorqShift

2003-2004

Forward High Energy (With Hardened Splines)

.077/1.96

R575150

5R110W TorqShift High Energy Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Overdrive High Energy

.074/1.88

R575170

5R110W TorqShift Stage-1™ Friction Clutch Plate

FORD 5R110W TorqShift

2003-2004

Forward Stage-1™

.077/1.96

R600800

5R110W TorqShift Stage-1™ Friction Clutch Plate

FORD 5R110W TorqShift

2005-ON

Forward Stage-1™

.078/1.98

R600805

5R110W TorqShift Stage-1™ Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Coast HP Stage-1™

.078/1.98

R600810

5R110W TorqShift Stage-1™ Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Overdrive Stage-1™

.075/1.91

R600815

5R110W TorqShift Stage-1™ Friction Clutch Plate

FORD 5R110W TorqShift

2003-2004

Intermediate Stage-1™

.078/1.98

R600820

5R110W TorqShift Stage-1™ Friction Clutch Plate

FORD 5R110W TorqShift

2005-ON

Intermediate Stage-1™

.078/1.98

R600825

5R110W TorqShift Stage-1™ Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Direct Stage-1™

.077/1.96

R600830

E4OD, 4R100 Stage-1™ Friction Clutch Plate

FORD E4OD, 4R100

1989-1996

Low, Reverse, Stage-1™

.076/1.93

R600835

5R110W TorqShift (HT) Hybrid Technology Friction Clutch Plate

FORD 5R110W TorqShift

2005-ON

Forward Clutch Proprietary High Energy (HT)

.078/1.98

RH575152

5R110W TorqShift (HT) Hybrid Technology Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Direct Clutch Proprietary High Energy (HT)

.077/1.96

RH575155

5R110W TorqShift (HT) Hybrid Technology Friction Clutch Plate

FORD 5R110W TorqShift

2003-2004

Intermediate Clutch Proprietary High Energy (HT)

.078/1.98

RH575165

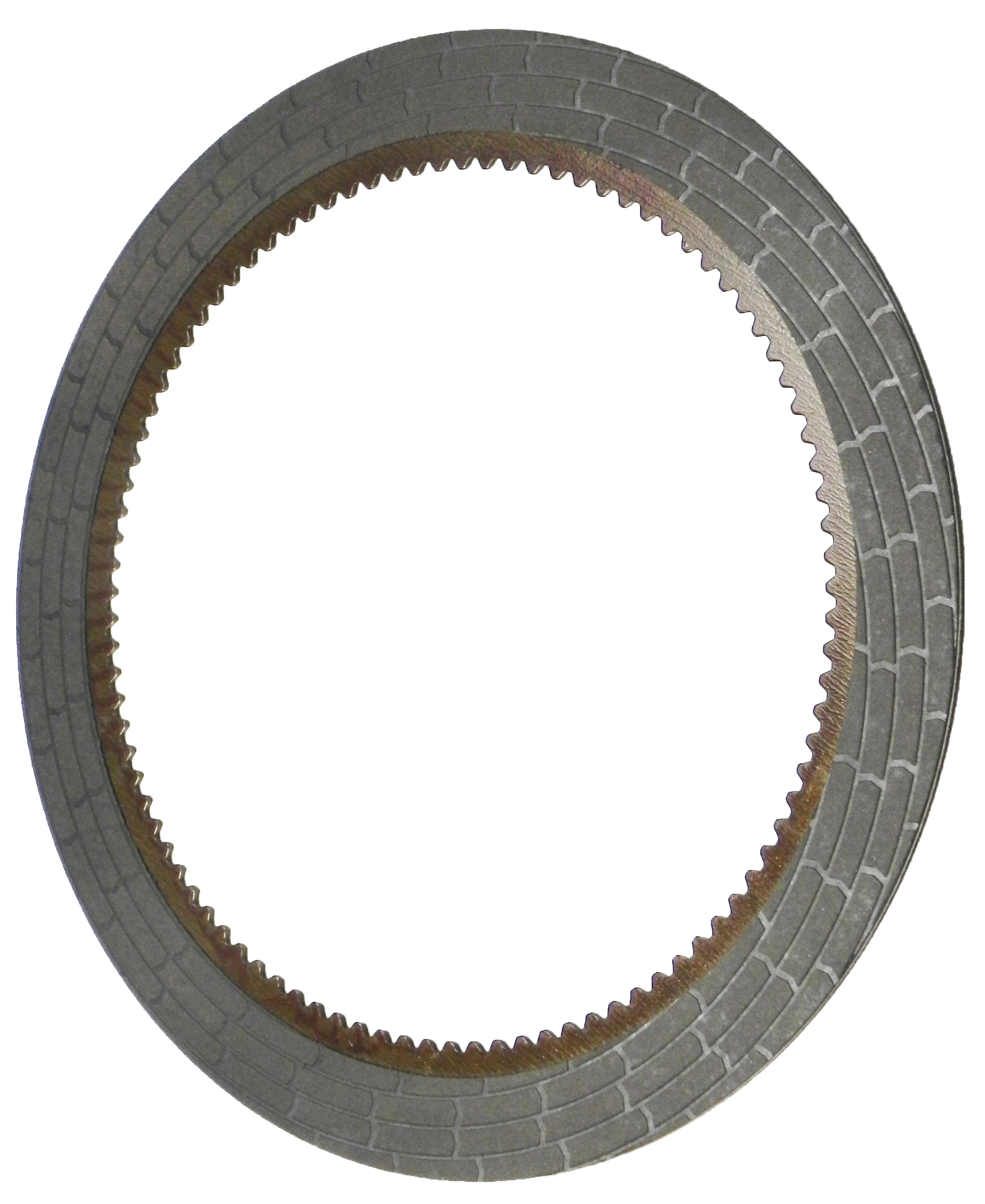

5R110W TorqShift (HT) Hybrid Technology Friction Clutch Plate

FORD 5R110W TorqShift

2005-ON

Intermediate Clutch Proprietary High Energy (HT)

.078/1.98

RH575167

5R110W TorqShift (HT) Hybrid Technology Friction Clutch Plate

FORD 5R110W TorqShift

2003-ON

Coast Clutch Proprietary High Energy (HT)

.078/1.98

RH575175

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Intermediate (Front Apply)

.125/3.18

511103

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Overdrive

.079/2.01

511104

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Coast

.079/2.01

511105

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Direct

.079/2.01

511106

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2005-ON

Forward

.080/2.03

511107

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2005-ON

Intermediate

.118/3.00

511109

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Forward (03-04), Direct (03-ON) (.147")

.147/3.73

5111164

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Forward (03-04), Direct (03-ON) (.203")

.216/5.49

5111165

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2005-ON

Intermediate (.077")

.077/1.96

5111166

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Overdrive (.198")

.198/5.03

5111167

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2005-ON

Intermediate Backing Plate

.460/11.68

5111186

5R110W TorqShift Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Reverse

.069/1.75

511451

5R110W TorqShift Kolene® Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Overdrive, Kolene® High Performance

.079/2.01

51K104

5R110W TorqShift Kolene® Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Coast, Kolene® High Performance

.079/2.01

51K105

5R110W TorqShift Kolene® Forward, Direct .079 Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Forward, Direct Kolene® High Performance

.079/2.01

51K106

5R110W TorqShift Kolene® Forward, Direct .059 Steel Clutch Plate

FORD 5R110W TorqShift

2003-ON

Forward, Direct Kolene® High Performance

.059/1.50

51K106-150

5R110W TorqShift Kolene® Steel Clutch Plate

FORD 5R110W TorqShift

2005-ON

Forward, Kolene® High Performance

.080/2.03

51K107

5R110W TorqShift Kolene® Steel Clutch Plate

FORD 5R110W TorqShift

2005-ON

Forward, Kolene® High Performance

.058/1.47

51K107-147

5R110W TorqShift Kolene® Steel Clutch Plate

FORD 5R110W TorqShift

2005-ON

Forward, Kolene® High Performance

.067/1.70

51K107-170

5R110W TorqShift Kolene® Steel Clutch Plate

FORD 5R110W TorqShift

2005-ON

Intermediate, Kolene® High Performance

.118/2.99

51K109

C6 Kolene® Steel Clutch Plate

1976-1996

Reverse Kolene® High Performance

.069/1.75

51K451

No items found.

5R110W Transmission Rebuild Kit

5R110W GPZ Performance Transmission Super Rebuild Kit

2005-2007

GPZ Performance Transmission Super Rebuild Kit

RMCSKGPZK-026

5R110W GPZ Performance Transmission Super Rebuild Kit

2008-UP

GPZ Performance Transmission Super Rebuild Kit

RMCSKGPZK-029

5R110W Transmission Torqkit Performance Rebuild Kit 05-07

2005-2007

Torqkit Performance Transmission Super Rebuild Kit

RSKMAX-026

5R110W Transmission Torqkit Performance Rebuild Kit 08-ON

2008-ON

Torqkit Performance Transmission Super Rebuild Kit

RSKMAX-029

5R110W Transmission Torqkit Performance Rebuild Kit 03-04

2003-2004

Torqkit Performance Transmission Super Rebuild Kit

RSKMAX-030

No items found.

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.

Dedicated to Innovation
