6L90 Transmission

The 6L90 transmission is a 6-speed GM automatic transmission designed for rear-wheel drive and rear focused all-wheel drive vehicles. Paired with GM's V8 Vortec VVT and V8 Duramax engines the 6L90 transmission is found in GM heavy duty and diesel trucks, cargo vans, and the Camaro ZL1. The 6L90 transmission provides optimum 6-speed performance and efficiency by taking advantage of a wider gear ratio instead of traditional planetary gearset design. The 6L90 is larger than its 6L80 contemporary and features one more clutch plate in each pack than the 6L90. Raybestos Powertrain has developed a 3-5 Reverse redesigned ZPak (RZP-005) clutch pack and 4-5-6 redesigned ZPak (RZP-006) clutch pack to combat the common 3-5 Reverse and 4-5-6 clutch 6L90 transmission failure points. See more product details below.

6L90 Transmission Specs

Class: 6-speed
Production: 2007 - Present
Predecessor: 4L60E
Contemporary: 6L80
Successor: 8L90
Torque Converter: 13.5 inches
Gear Ratios:
1st - 4.03, 2nd - 2.36, 3rd - 1.53, 4th - 1.15, 5th - .85, 6th - .67, Reverse - 3.06
6L80 / 6L90 4-5-6 Z Pak® Clutch Pack
2006-ON, 2007-ON
4-5-6 Z Pak® Clutch Pack Module
Contents:
1 4-5-6 Apply Plate Steel, 1 4-5-6 Reaction Plate, 7 4-5-6 SS ID Spline GPZ, 6 4-5-6 SS OD Spline GPZ, 1 SS OD Spline (Thin GPZ)
RZP-006
View
6L80 / 6L90 3-5 Reverse Z Pak® Clutch Pack
2006-ON
3-5 Reverse Z Pak® Clutch Pack Module
Contents:
1 3-5 Reverse Steel, 5 3-5 Reverse ID Spline GPZ, 4 3-5 Reverse OD Spline GPZ, 1 3-5 Reverse DS OD Spline GPZ
RZP-005
View
6L90 GPZ Friction Clutch Pack
2007-ON
GPZ Friction Clutch Pack Module with 3-5 Reverse Z Pak® and 4-5-6 Z Pak®
Contents:
(6) GPZ565 1-2-3-4 GPZ .063/1.60, (6) GPZ570 2-6 Clutch GPZ .071/1.80, (6) GPZ580 Low/Reverse GPZ .063/1.60, (1) RZP-005 3-5 Reverse Z Pak® (1 3-5 Reverse Steel, 5 3-5 Reverse Single Sided ID Spline GPZ, 4 3-5 Reverse Single Sided OD Spline GPZ, 1 3-5 Reverse Double Sided OD Spline GPZ), (1) RZP-006 4-5-6 Z Pak® (1 4-5-6 Apply Plate Steel, 1 4-5-6 Reaction Plate, 7 4-5-6 Single Sided ID Spline GPZ, 6 4-5-6 Single Sided OD Spline GPZ, 1 Single Sided OD Spline Thin GPZ) (use with steel module part number: 000617)
RGPZ-027
View
6L90 Stage-1 Friction Clutch Pack
2007-ON
Stage-1 Friction Clutch Pack Module
Contents:
6 2-6 Stage-1 Red, 5 3-5 Reverse Stage-1 Red, 6 1-2-3-4 Stage-1 Red, 7 4-5-6 Stage-1 Red, 6 Low/Reverse Stage-1 Red (Also fits 6L80)
RCPS-214
View
6L90 GEN 2 Blue Performance Friction Clutch Pack
2007-ON
GEN 2 Blue Plate Special® Friction Clutch Pack Module
Contents:
(6) R577855 2-6, (6) R577845 1-2-3-4, (6) R577835 Low/Reverse, (5) R577455 3-5 Reverse, (7) R577465 4-5-6
RCPBP-54
View
6L90 Friction Clutch Pack
2007-ON
Friction Clutch Pack Module
Contents:
6 2-6, High Energy, 7 4,5,6 High Energy, 5 3,5 High Energy, 6 1-2-3-4 High Energy
RCP96-214
View
6L90 Kolene® Steel Clutch Pack
2007-ON
Kolene® Steel Clutch Pack Module
Contents:
6 2nd, 6th Clutch Kolene® High Performance, 5 3rd, 5th Reverse Kolene® High Performance, 6 1st, 2nd, 3rd, 4th Kolene® High Performance, 6 Low, Reverse Kolene® High Performance, 7 4th, 5th, 6th Kolene® High Performance
STMGM09K
View
6L90 Steel Clutch Pack
2007-ON
Steel Clutch Pack Module
Contents:
6 1st, 2nd, 3rd, 4th, 6 Low, Reverse, 6 2nd, 6th Clutch, 7 4th, 5th, 6th, 5 3rd, 5th Reverse
000605
View
6L90 Steel Clutch Pack
2007-ON
Steel Clutch Pack Module
Contents:
6 1st, 2nd, 3rd, 4th, 6 Low, Reverse, 6 2nd, 6th Clutch, 7 4th, 5th, 6th, 5 3rd, 5th Reverse
000605
View
6L90 Steel Clutch Pack
2007-ON
Steel Clutch Pack Module (use with RGPZ-027)
Contents:
6 2-6 Clutch, 6 1-2-3-4 clutch, 6 Low, Reverse (use with RGPZ-027 friction module which contains single-sided ZPaks for 3-5 reverse and 4-5-6)
000617
View
6L90 Steel Clutch Pack
2007-ON
Steel Clutch Pack Module (use with RGPZ-027)
Contents:
6 2-6 Clutch, 6 1-2-3-4 clutch, 6 Low, Reverse (use with RGPZ-027 friction module which contains single-sided ZPaks for 3-5 reverse and 4-5-6)
000617
View
6L80, 6L90 Filtertek OE Transmission Filter
2006-ON
Transmission Filter
515709
View
6L90 (2WD & 4WD) Transmission Premium Filter & Gasket Kit
2006-ON
Shift-Pro Filter Kit
997709G
VIEW
6L80, 6L90 1-2-3-4 GEN 2, Blue Friction Clutch Plate
2006-ON
GEN 2, Blue Plate Special
1st, 2nd, 3rd, 4th Gen 2
.062/1.57
R577845
View
6L80, 6L90 2-6 GEN 2, Blue Friction Clutch Plate
2006-ON
GEN 2, Blue Plate Special
2nd, 6th Clutch Gen 2
.071/1.80
R577855
View
6L80, 6L90 2-6 GEN 2, Blue Friction Clutch Plate
2006-ON
GEN 2, Blue Plate Special
2nd, 6th Clutch Gen 2
.071/1.80
R577855
View
6L80, 6L90 3-5 Reverse GEN 2, Blue Friction Clutch Plate
2006-ON
GEN 2, Blue Plate Special
3rd, 5th, Reverse Gen 2
.071/1.80
R577455
View
6L80, 6L90 3-5, Reverse GEN 2, Blue Friction Clutch Plate
2006-ON
GEN 2, Blue Plate Special
3rd, 5th, Reverse Gen 2
.071/1.80
R577455
View
6L80, 6L90 4-5-6 GEN 2, Blue Friction Clutch Plate
2006-ON
GEN 2, Blue Plate Special
4th, 5th, 6th Gen 2
.062/1.57
R577465
View
6L80, 6L90 Low Reverse GEN 2, Blue Friction Clutch Plate
2006-ON
GEN 2, Blue Plate Special
Low, Reverse Gen 2
.63/1.60
R577835
View
6L80, 6L90 Low Reverse GEN 2, Blue Friction Clutch Plate
2006-ON
GEN 2, Blue Plate Special
Low, Reverse Gen 2
.63/1.60
R577835
View
6L80, 6L90 1-2-3-4 GPZ Friction Clutch Plate
2006-ON
GPZ
1st, 2nd, 3rd ,4th GPZ
.063/1.60
GPZ565
View
6L80, 6L90 2-6 GPZ Friction Clutch Plate
2006-ON
GPZ
2nd, 6th GPZ
.071/1.80
GPZ570
View
6L80, 6L90 3-5, Reverse GPZ Friction Clutch Plate
2006-ON
GPZ
3rd, 5th, Reverse GPZ
.070/1.78
GPZ235
View
6L80, 6L90 4-5-6 GPZ Friction Clutch Plate
2006-ON
GPZ
4th, 5th, 6th GPZ
.063/1.60
GPZ575
View
6L80, 6L90 Low, Reverse GPZ Friction Clutch Plate
2006-ON
GPZ
Low, Reverse GPZ
.063/1.60
GPZ580
View
6L80, 6L90 2-6 High Energy Friction Clutch Plate
2006-ON
High Energy
2nd, 6th High Energy
.070/1.78
R558370
View
6L80, 6L90 3-5, Reverse High Energy Friction Clutch Plate
2006-ON
High Energy
3rd, 5th, Reverse High Energy
.070/1.78
R558350
View
6L80, 6L90 4-5-6 High Energy Friction Clutch Plate
2006-ON
High Energy
4th, 5th, 6th High Energy
.062/1.57
R558340
View
6L80, 6L90 Low, Reverse High Energy Friction Clutch Plate
2006-ON
High Energy
Low, Reverse High Energy
.062/1.57
R558380
View
6L80, 6L90 1-2-3-4 Friction Clutch Plate
2006-ON
OE Replacement
1st, 2nd, 3rd ,4th
.062/1.57
R558360
View
6L80, 6L90 1-2-3-4 Stage-1 Friction Clutch Plate
2006-ON
Stage-1
1st, 2nd, 3rd, 4th HP Stage-1
.062/1.57
R600915
View
6L80, 6L90 2-6 Stage-1 Friction Clutch Plate
2006-ON
Stage-1
2nd, 6th HP Stage-1
.070/1.78
R600920
View
6L80, 6L90 3-5, Reverse Stage-1 Friction Clutch Plate
2006-ON
Stage-1
3rd, 5th, Reverse HP Stage-1
.070/1.78
R600910
View
6L80, 6L90 4-5-6 Stage-1 Friction Clutch Plate
2006-ON
Stage-1
4th, 5th, 6th HP Stage-1
.062/1.57
R600905
View
6L80, 6L90 Low, Reverse Stage-1 Friction Clutch Plate
2006-ON
Stage-1
Low, Reverse HP Stage-1
.062/1.57
R600925
View
6L80, 6L90 1-2-3-4 Steel Clutch Plate
2006-ON
Steel Clutch Plate
1st, 2nd, 3rd ,4th
.068/1.73
511188
View

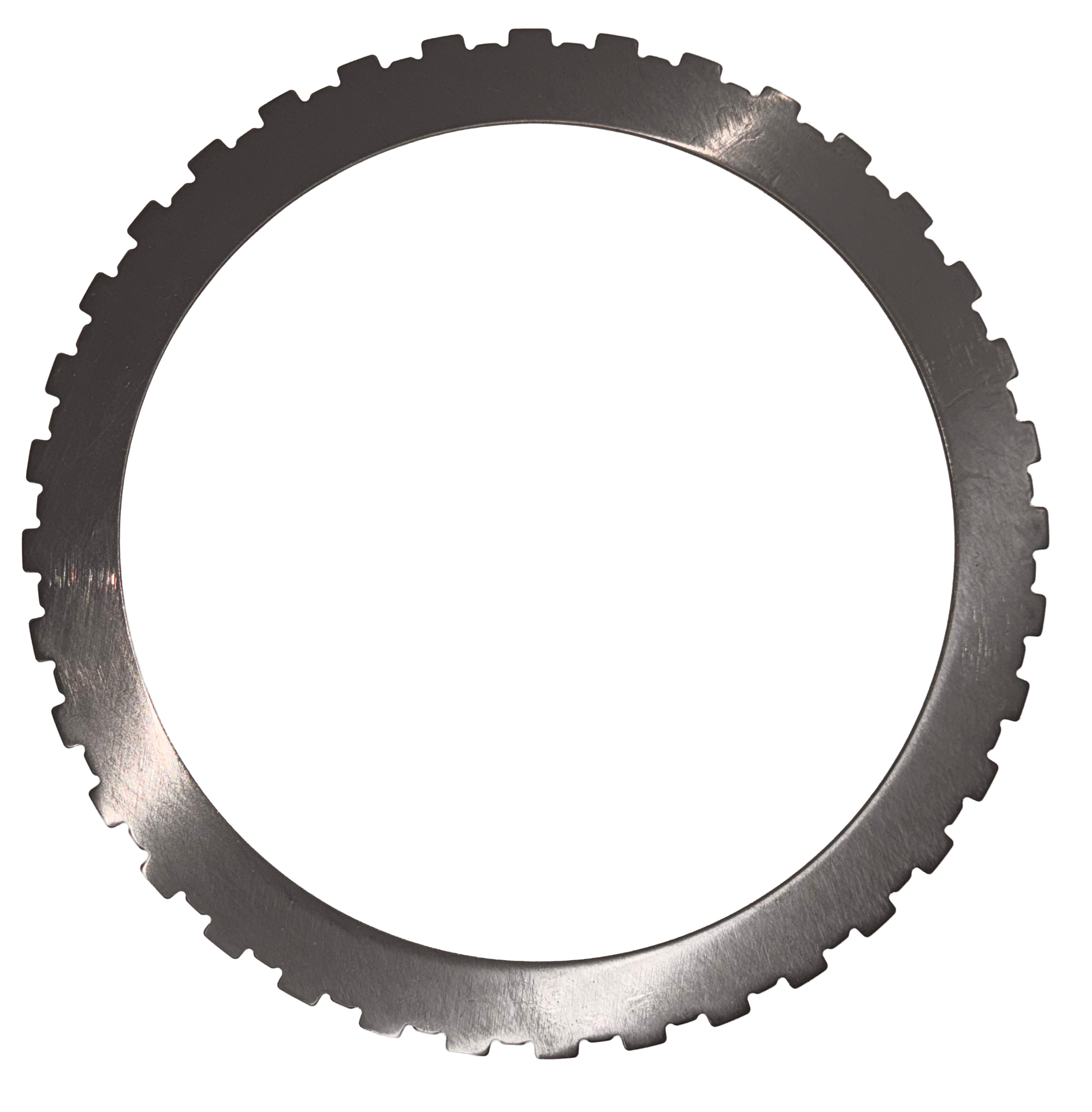

6L80, 6L90 2-6 Steel Clutch Plate
2006-ON
Steel Clutch Plate
2nd, 6th Clutch
.085/2.16
511184
View
6L80, 6L90 3-5 Reverse Steel Clutch Plate
2006-ON
Steel Clutch Plate
3rd, 5th, Reverse
.109/2.77
511187
View
6L80, 6L90 4-5-6 Steel Clutch Plate
2006-ON
Steel Clutch Plate
4th, 5th, 6th
.085/2.16
511186
View
6L80, 6L90 4-5-6 (Lindered) Steel Clutch Plate
2006-ON
Steel Clutch Plate
4th, 5th, 6th (Gray Surface Finish)
.085/2.16
511452
View
6L80, 6L90 Low Reverse Steel Clutch Plate
2006-ON
Steel Clutch Plate
Low, Reverse
.068/1.73
511185
View
6L80, 6L90 1-2-3-4 Kolene® Steel Clutch Plate
2006-ON
Kolene® Steel Clutch Plate
1st, 2nd, 3rd, 4th Kolene® High Performance
.068/1.73
51K188
View
6L80, 6L90 2-6 Kolene® Steel Clutch Plate
2006-ON
Kolene® Steel Clutch Plate
2nd, 6th Clutch Kolene® High Performance
.085/2.16
51K184
View
6L80, 6L90 3-5 Reverse Kolene® Steel Clutch Plate
2006-ON
Kolene® Steel Clutch Plate
3rd, 5th, Reverse Kolene® High Performance
.109/2.77
51K187
View
6L80, 6L90 4-5-6 Kolene® Steel Clutch Plate
2006-ON
Kolene® Steel Clutch Plate
4th, 5th, 6th Kolene® High Performance
.085/2.16
51K186
View
6L80, 6L90 Low Reverse Kolene® Steel Clutch Plate
2006-ON
Kolene® Steel Clutch Plate
Low, Reverse Kolene® High Performance
.068/1.73
51K185
View
No items found.
6L80/90 (300mm) Carbon - C9 Friction Wafer
TechniTorq C9, 11.120 X 9.840 X .038
Friction Wafer
R438990C9
View
6L80/90 (300mm)  Bearing, Enclosed, Impeller
ID 65.99mm, OD 92.71mm, Thickness 4.84mm
Bearing, Enclosed, Impeller
RTX76838
View
6L90 Exploded View
