A140E Transmission Rebuild Kit Parts

The A140E transmission is a 4-speed electronically controlled automatic transmission used in the Toyota Celica and Camry among other 1997 to 2001 vehicle models. Common A140E transmission failure points are loss of reverse, premature upshifts, erratic shifting, and overheating. See the full Raybestos Powertrain A140E transmission parts listing below.

Transmission Specs

4-Speed

1997-2001

Gear Ratios: 1st - 2.81, 2nd - 1.55, 3rd - 1, 4th - .71, Reverse - 2.3

View Tech Resources >>

Exploded View >>

A140E Transmission Clutch Packs

A140E Friction Clutch Pack

1986-1997

Friction Clutch Pack Module

Contents:

6 Direct High Energy, 6 Intermediate High Energy, 3 Overdrive Brake High Energy, 3 Intermediate High Energy, 4 Forward Direct High Energy

RCP96-111

A140E, A140L, A141E, A142E, A142L Steel Clutch Pack

TOYOTA A140E, A140L, A141E, A142E, A142L

1983-1986

Steel Clutch Pack Module

Contents:

8 1st, Reverse, Overdrive Brake, 3 2nd Brake or Intermediate, 9 Direct, Forward, Overdrive, Direct

STMTOYTA11

A140E, A140L, A141E (Camry 86-8/91, Celica 86-8/93) Steel Clutch Pack

TOYOTA A140E, A140L, A141E (Camry 86-8/91, Celica 86-8/93)

1986-ON

Steel Clutch Pack Module

Contents:

7 Direct, Forward, Overdrive, Direct, 5 2nd Brake or Intermediate, 6 #2 Brake, Intermediate, Overdrive, 3 Overdrive Direct, 3 2nt, Reverse, Overdrive Brake

STMTOYTA12

A140E Transmission Filters

A130, A140E, A140L, A141E, A142E, A142L Transmission Filter

TOYOTA A130, A140E, A140L, A141E, A142E, A142L

1983-ON

Transmission Filter

515820

A130, A130L, A131A, A131L, A132L (Geo Prizm, Toyota Tercel, Corolla), A140E, A140L, A141E, A142E, A142L (Camry, Celica, MR2) Transmission Filter

TOYOTA A130, A130L, A131A, A131L, A132L (Geo Prizm, Toyota Tercel, Corolla), A140E, A140L, A141E, A142E, A142L (Camry, Celica, MR2)

1983-ON

Transmission Filter

515920

A140E, A140L, A141E, A142E, A142L (Camry SXV 10, Celica) Transmission Filter

TOYOTA A140E, A140L, A141E, A142E, A142L (Camry SXV 10, Celica)

1991-ON

Transmission Filter

515921

No items found.

A140E Transmission Clutch Plates

A540E, A540H, A541E Intermediate High Energy Friction Clutch Plate

TOYOTA A540E, A540H, A541E

1988-ON

Intermediate High Energy

.070/1.78

33/44

Teeth

5.585

OD

35677-28030, 35677-32050, 35677-32150, 88973199

R576150

A140E, A140L, A141E, A142E, A142L Overdrive Direct High Energy Friction Clutch Plate

TOYOTA A140E, A140L, A141E, A142E, A142L

1986-ON

Overdrive Direct High Energy

.072/1.83

40

Teeth

4.96

OD

35633-32031, 35633-32060, 35677-30150, 88972545

R576100

A540E, A540H, A541E Forward High Energy Friction Clutch Plate

TOYOTA A540E, A540H, A541E

1988-ON

Forward High Energy

.065/1.65

40

Teeth

4.96

OD

35633-10020, 35633-12080, 35633-32050

R576000

A140E, A140L, A141E, A142E, A142L Reverse, Overdrive Friction Clutch Plate

TOYOTA A140E, A140L, A141E, A142E, A142L

1983-ON

Reverse, Overdrive Brake

.067/1.70

33/44

Teeth

5.585

OD

35677-32040

R573750

A140E, A140L, A141E, A142E, A142L Overdrive Steel Clutch Plate

TOYOTA A140E, A140L, A141E, A142E, A142L

1986-ON

#2 Brake, Intermediate, Overdrive

.071/1.80

12

Teeth

6.898

OD

35648-20010

511881

A140E, A140L, A141E, A142E, A142L Direct Steel Clutch Plate

TOYOTA A140E, A140L, A141E, A142E, A142L

1986-ON

Overdrive Direct

.070/1.78

20

Teeth

5.257

OD

35634-22010

511882

A40/41/43, A40D, A42D/DL, A43D/DE/DL, A44DE/DL, A45DF/DL, AW55/70/71, KM148, 03-72LE Direct Forward Steel Clutch Plate

TOYOTA / MITSUBISHI A40/41/43, A40D, A42D/DL, A43D/DE/DL, A44DE/DL, A45DF/DL, AW55/70/71, KM148, 03-72LE

1983-ON

Forward, Direct, Overdrive

.071/1.80

8

Teeth

5.2

OD

35634-12020, 35634-12030, 35634-32010, 94840893, 94844878, 96053988

511883

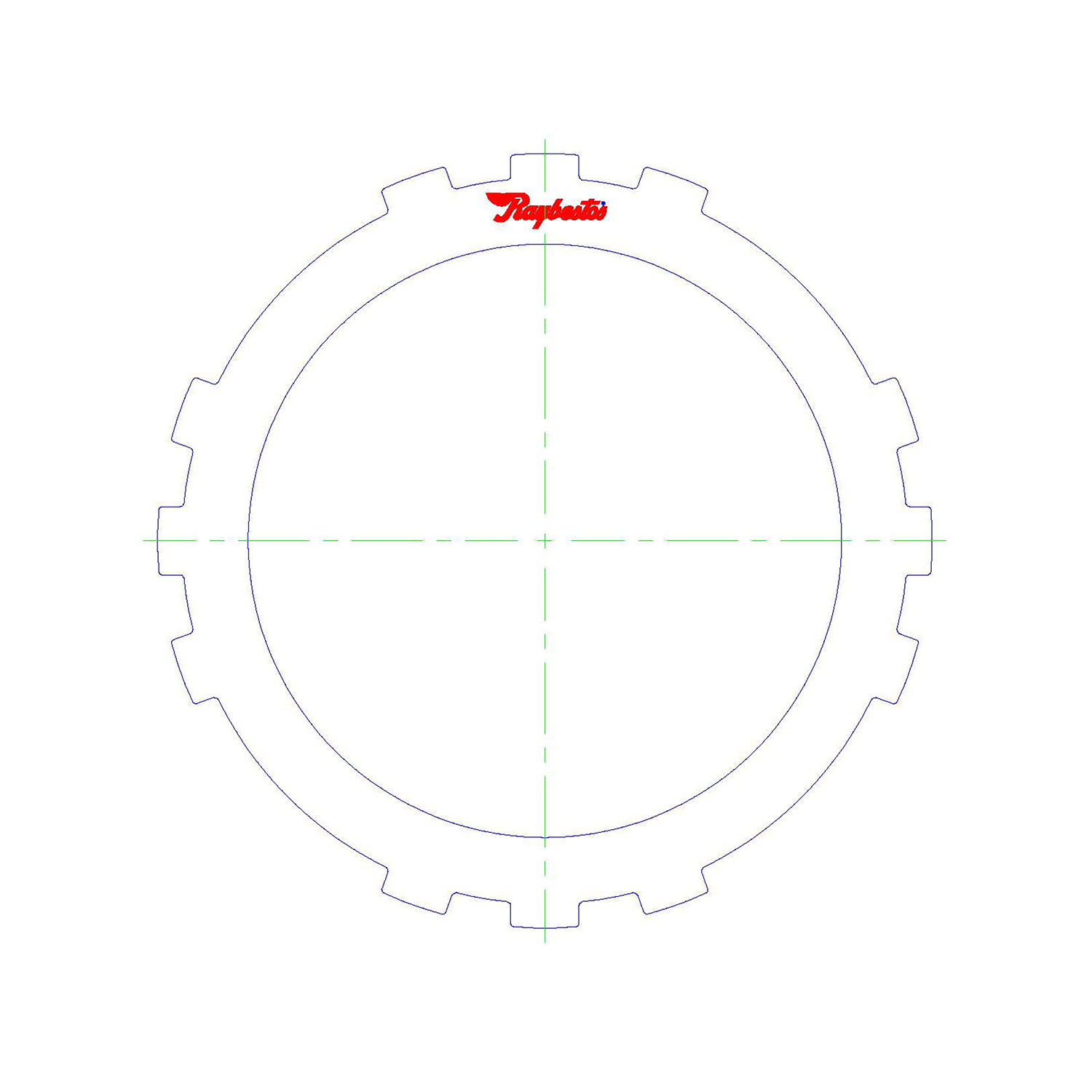

MX17 (A210) Low Reverse Steel Clutch Plate

TOYOTA MX17 (A210)

1985-ON

1st Reverse

.071/1.80

12

Teeth

5.975

OD

35648-32020, 94840903, 94840916, 94845450

511884

A540E, A540H, A541E 2nd Steel Clutch Plate

TOYOTA A540E, A540H, A541E

1988-1991

2nd Brake

.071/1.80

12

Teeth

5.975

OD

35648-32010

511885

A140E Transmission Bands

A130 (83-ON), A140, A240 (85-ON) Intermediate Transmission Band

TOYOTA A130 (83-ON), A140, A240 (85-ON)

1983-ON

Intermediate

513755

No items found.

No items found.

Please use the website menu to visit our PDF catalogs for additional information on individual friction clutch plates, steel clutch plates, and torque converter components for this transmission.
