4L60E Transmission

The 4L60E transmission is a 4-speed GM automatic transmission designed for rear-wheel drive and four-wheel drive V6 and V8 cars, trucks, and SUVs. The 4L60E transmission is found in the S-10, Silverado, Suburban, Sierra, and Yukon. A 4L60E performance transmission version is found in the Corvette, Camaro, Firebird, and GTO. The 4L60E transmission was one of the earliest mass produced transmissions to incorporate the use of a computer to interpret speed sensor data and determine the best time to complete shifts with a solenoid. These electronic additions created improvements in fuel efficiency and performance and allowed the 4L60E transmission to not have to rely on gear changes that are actuated by hydraulic pressure. Raybestos Powertrain has developed GPZ material and a 3-4 clutch redesigned ZPak (RZP-001) clutch pack to combat the common 3-4 clutch failure point found in 4L60E transmissions. See more product details below.

4L60E Transmission Specs

Class: 4-speed

Production: 1992-2013

Predecessor: TH700-R4

Successor: 6L80

Successor: 6L90

Torque Converter: 245mm, 298mm

Gear Ratios:

1st - 3.06, 2nd - 1.63, 3rd - 1.00, 4th - .70

View Tech Resources >>

Exploded View >>

4L60E Transmission Parts

Clutch Packs Filters Clutches Bands Solenoids Sprags Kits Converter

4L60E Transmission Clutch Packs

4L60, 4L60E Friction Clutch Pack

1987-ON

Friction Clutch Pack Module

Contents:

2 Overrun Tan, 5 Low/Reverse Tan, 4 Reverse Input 2nd Design Tan, 5 Forward Tan, 6 3rd, 4th High Energy (Hardened Core)

RCP96-087

4L60, 4L60E, 4L65E Stage-1 Friction Clutch Pack

GM 4L60, 4L60E, 4L65E

1988-ON

Stage-1 Friction Clutch Pack Module

Contents:

1 - RZP-001 3-4 ZPak, 2 - R600270 Overrun Stage-1, 5 - R600260 Low/Reverse Stage-1, 4 - R600280 Reverse Stage-1, 5 - R600240 Forward Stage-1 (Use with steel module 000757 or STMGM10K)

RCPS-51

4L60E GPZ Friction Clutch Pack

1987-ON

GPZ Friction Clutch Pack Module

Contents:

2 Overrun Tan, 5 Low/Reverse Tan, 4 Reverse Input 2nd Design Tan, 5 Forward Tan, 6 3rd , 4th GPZ Clutch 4L60E, TH700-R4

RGPZ-001

4L60E Stage-1 Friction Clutch Pack

1988-ON

Stage-1 Friction Clutch Pack Module

Contents:

4 Reverse, 6 3-4 (.080"), 2 Overrun, 5 Forward, 5 Low/Reverse

RCPS-20

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Friction Clutch Pack

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1984

Friction Clutch Pack Module

Contents:

2 Overrun Tan, 5 Low/Reverse Tan, 4 Reverse Input 1st Design Tan, 5 Forward 1st Design Tan, 6 3rd, 4th High Energy (Hardened Core)

RCP96-058

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Friction Clutch Pack

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1985-1987

Friction Clutch Pack Module

Contents:

2 Overrun Tan, 5 Low/Reverse Tan, 4 Reverse Input 1st Design Tan, 5 Forward Tan, 6 3rd, 4th High Energy (Hardened Core)

RCP96-057

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Stage-1 Friction Clutch Pack

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

Stage-1 Friction Clutch Pack Module

Contents:

2 Overrun Stage-1 Red, 5 Low/Reverse Stage-1 Red, 4 Reverse Input Stage-1 Red, 5 Forward Stage-1 Red, 8 3rd, 4th HP Stage-1 Red (Must Use With STMGM17 Steel Module)

RCPS-15

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Friction Clutch Pack

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1988-ON

Friction Clutch Pack Module

Contents:

1 3-4 ZPak, 4 Reverse Input Tan, 5 Forward Tan, 5 Low/Reverse Tan, 2 Overrun Tan (Use with steel module 000757 or STMGM10K)

RCP96-140

TH700-R4, 4L60E, 4L65E, 4L70E GEN 2 Blue Friction Clutch Pack

GM TH700-R4, 4L60E, 4L65E, 4L70E

1982-ON

GEN 2 Blue Plate Special® Friction Clutch Pack Module

Contents:

(1) 3rd, 4th Apply Steel, (7) 3rd, 4th Steels, (8) 3rd, 4th GEN 2 Blue Race Product (Hardened Core)

RCPBP-21

4L60E 3-4 Z Pak® Clutch Pack

GM TH700-R4, 4L60E, 4L65E, 4L70E

1988-ON

3-4 Z Pak® Clutch Pack Module

Contents:

1 3-4 GPZ, 1 3-4 Apply Plate, 1 3-4 Press Plate, 7 3-4 SS OD Spline GPZ, 7 3-4 SS ID Spline GPZ, 1 3-4 OD Spline Shim (Optional)

RZP-001

4L60, 4L60E Kolene® Steel Clutch Pack

1987-1996

Kolene® Steel Clutch Pack Module

Contents:

5 Low/Rev, 4 Rev Flat, 1 3-4, 5 3-4, 5 Forward, 2 Overrun

STMGM34K

4L60E Kolene® Steel Clutch Pack Module

1987-1996

Kolene® Steel Clutch Pack Module

Contents:

5 Low, Reverse Kolene® High Performance, 1 3rd, 4th Kolene® High Performance, 5 3rd, 4th Kolene® High Performance, 3 Reverse Input, Kolene® High Performance, 4 Forward, Kolene® High Performance, 2 Overrun Kolene® High Performance.

STMGM07K

4L60E Steel Clutch Pack

1993-ON

Steel Clutch Pack Module

Contents:

4 Reverse Input, 5 Low, Reverse, 5 3rd, 4th, 2 Overrun, 5 Forward

000752

4L60E Steel Clutch Pack

1993-ON

Steel Clutch Pack Module

Contents:

4 Reverse Input, 5 Low, Reverse, 5 3rd, 4th, 2 Overrun, 5 Forward

000752

4L60E Steel Clutch Pack

1993-ON

Steel Clutch Pack Module

Contents:

5 Low, Reverse (Turbulated), 4 Reverse Input (Turbulated), 5 3rd, 4th (Special Finish) 4L60E, 2 Overrun, 5 Forward

000596

4L60E Steel Clutch Pack

1993-ON

Steel Clutch Pack Module

Contents:

5 Low, Reverse (Turbulated), 4 Reverse Input (Turbulated), 5 3rd, 4th (Special Finish) 4L60E, 2 Overrun, 5 Forward

000596

4L60E Steel Clutch Pack

1994-ON

Steel Clutch Pack Module

Contents:

5 Low, Reverse, 1 3rd, 4th, 5 3rd, 4th, 3 Reverse Input, 5 Forward, 2 Overrun

000751

4L60E Steel Clutch Pack

1994-ON

Steel Clutch Pack Module

Contents:

5 Low, Reverse, 1 3rd, 4th, 5 3rd, 4th, 3 Reverse Input, 5 Forward, 2 Overrun

000751

4L60E, 4L65E Steel Clutch Pack

GM 4L60E, 4L65E

2001-ON

Steel Clutch Pack Module

Contents:

4 Reverse Input (Turbulated), 6 3rd, 4th Lindered Coated, 2 Overrun, 1 Forward (Waved), 5 Forward, 5 Low, Reverse (Turbulated)

STMGM14

TH700-R4, 4L60 Kolene® Steel Clutch Pack

GM TH700-R4, 4L60

1982-ON

Kolene® Steel Clutch Pack Module

Contents:

5 3rd, 4th, Kolene® High Performance

80K599

TH700-R4, 4L60 Kolene® Steel Clutch Pack

GM TH700-R4, 4L60

1982-ON

Kolene® Steel Clutch Pack Module

Contents:

3 Reverse Input, Kolene® High Performance

80K605

TH700-R4, 4L60, 4L60E Steel Clutch Pack

GM TH700-R4, 4L60, 4L60E

1987-ON

Steel Clutch Pack Module

Contents:

4 Reverse Input, 5 Low, Reverse, 2 Overrun, 5 Forward (Use with RZP-001 3-4 Single-Sided ZPak found in OE replacement friction module RCP96-140 or performance friction module RCPS-51)

000757

TH700-R4, 4L60, 4L60E Steel Clutch Pack

GM TH700-R4, 4L60, 4L60E

1987-ON

Steel Clutch Pack Module

Contents:

4 Reverse Input, 5 Low, Reverse, 2 Overrun, 5 Forward (Use with RZP-001 3-4 Single-Sided ZPak found in OE replacement friction module RCP96-140 or performance friction module RCPS-51)

000757

TH700-R4, 4L60, 4L60E Kolene® Steel Clutch Pack

GM TH700-R4, 4L60, 4L60E

1987-ON

Kolene® Steel Clutch Pack Module

Contents:

4 Reverse Input, Kolene® High Performance, 5 Low, Reverse Kolene® High Performance, 2 Overrun Kolene® High Performance, 5 Forward, Kolene® High Performance (Use with RZP-001 3-4 Single-Sided ZPak found in OE replacement friction module RCP96-140 or performance friction module RCPS-51)

STMGM10K

TH700-R4, 4L60, 4L60E Steel Clutch Pack

GM TH700-R4, 4L60, 4L60E

L1987-ON

Steel Clutch Pack Module

Contents:

4 Reverse Input, 1 Reverse Input (Waved), 2 Overrun, 5 Forward, 1 Forward (Waved), 7 3rd, 4th, 1 3rd, 4th Apply, 5 Low, Reverse, 1 Low, Reverse (Waved)

STMGM17

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Kolene® Steel Clutch Pack

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1985-ON

Kolene® Steel Clutch Pack Module

Contents:

5 Forward, Kolene® High Performance

80K609

4L60E Transmission Filters

4L60E Transmission Shallow Pan Filter

1993-ON

Transmission Filter

515703

4L60E Transmission Filter

1998-ON

Transmission Filter

515704

4L60E Transmission Force Motor Filter (74 Micron)

1993-ON

Transmission Force Motor Filter (74 Micron)

514383

4L60E Transmission Shift Filter

1993-ON

Transmission Shift Filter

514348

4L60E Transmission Filter

1993-ON

Transmission Filter

515701

4L60E Transmission Filter

2005-2007

Transmission Filter

515697

4L60E Transmission Filter

2005-ON

Transmission Filter

515707

4L60E (Corvette) Transmission Filter

GM 4L60E (Corvette)

1997-2007

Transmission Filter

515705

TH700-R4, 4L60 Transmission Governor Filter

GM TH700-R4, 4L60

1982-ON

Transmission Governor Filter

514371

TH700-R4, 4L60 Transmission Pump, Valve Body Filter

GM TH700-R4, 4L60

1982-ON

Transmission Pump, Valve Body Filter

514370

4L60E Transmission Premium Filter & Gasket Kit 05-ON

2005-ON

Shift-Pro Filter Kit

997707

4L60E 1993-ON Cork Gasket Economy Transmission Filter Kit

1993-ON

Shift-Pro Filter Kit

327701

4L60E 1993-ON Nitrile Gasket Transmission Filter Kit

1993-ON

Shift-Pro Filter Kit

347701

4L60E 1993-ON Nitrile Gasket Economy Transmission Filter Kit

1993-ON

Shift-Pro Filter Kit

357701

4L60E Transmission Premium Filter & Gasket Kit 93-ON

1993-ON

Shift-Pro Filter Kit

997703

4L60E 1993-ON Cork Gasket Transmission Filter Kit

1993-ON

Shift-Pro Filter Kit

337701

4L60E Transmission Filter & Gasket Kit 98-ON

1998-ON

Shift-Pro Filter Kit

997704

4L60E Transmission Clutches

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th GEN 2, Blue Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

GEN 2, Blue Plate Special

3rd, 4th GEN 2, Race Product (Hardened Core)

.062/1.57

R577540

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward GEN 2, Blue Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

GEN 2, Blue Plate Special

Forward GEN 2, Race Product

.070/1.78

R577590

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low, Reverse GEN 2, Blue Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

GEN 2, Blue Plate Special

Low, Reverse, GEN 2, Race Product (High Static)

.088/2.24

R577230

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Overrun GEN 2, Blue Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

GEN 2, Blue Plate Special

Overrrun GEN 2, Race Product

.080/2.03

R577570

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Input GEN 2, Blue Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

GEN 2, Blue Plate Special

Reverse Input GEN 2, Raybestos Product (High Static)

.071/1.80

R577250

4L60, 4L60E 3-4 .080" GPZ Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

GPZ

3rd, 4th GPZ Clutch 4L60E, TH700-R4

.080/2.03

GPZ100

4L60E, 4L65E 3-4 .065" GPZ Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

2001-ON

GPZ

3rd, 4th GPZ Clutch 4L65E

.065/1.65

GPZ105

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th High Energy Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

2001-ON

High Energy

3rd, 4th Clutch High Energy 4L65E

.065/1.65

R558305

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th High Energy Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

High Energy

3rd, 4th High Energy (Hardened Core)

.080/2.03

R558310

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward High Energy Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

High Energy

Forward High Energy TH700-R4 (87-ON) 4L60/E (Retros To 85)

.070/1.78

R502650

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rs, 4th Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

OE Replacement

3rd, 4th

.080/2.03

R561438

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1985-ON

OE Replacement

Forward

.070/1.78

R505075

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward 1st Design Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1984

OE Replacement

Forward 1st Design

.080/2.03

R505150

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Overrun Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

OE Replacement

Overrun

.080/2.03

R505160

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Input, 1st Design Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1987

OE Replacement

Reverse Input, 1st Design

.080/2.03

R561430

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Input 2nd Design Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

OE Replacement

Reverse Input, 2nd Design

.070/1.78

R561800

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Stage-1

3rd, 4th HP Stage-1

.080/2.03

R600255

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Stage-1

3rd, 4th HP Stage-1

.062/1.57

R600250

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1985-ON

Stage-1

Forward, Stage-1

.069/1.75

R600240

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low, Reverse Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Stage-1

Low, Reverse, Stage-1

.087/2.21

R600260

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low, Reverse Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Stage-1

Low, Reverse, Stage-1 (No Grooves)

.087/2.21

R600261

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Overrun Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Stage-1

Overrun, Stage-1

.080/2.03

R600270

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Overrun Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Stage-1

Overrun, Stage-1 (No Grooves)

.080/2.03

R600271

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Input Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

Stage-1

Reverse Input, Stage-1

.070/1.78

R600280

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Input Stage-1 Friction Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

Stage-1

Reverse Input, Stage-1 (No Grooves)

.070/1.78

R600281

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3-4 Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

3rd, 4th

.060/1.52

511597

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th (.078") Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1993

Steel Clutch Plate

3rd, 4th

.078/1.98

511599

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th (.078") Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1986

Steel Clutch Plate

3rd, 4th

.078/1.98

511600

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3-4 (.107") Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1993-ON

Steel Clutch Plate

3rd, 4th

.107/2.72

511596

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3-4 (Lindered) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1993-ON

Steel Clutch Plate

3rd, 4th (Special Finish) 4L60E

.106/2.69

511587

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th Backing Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

3rd, 4th Apply

.130/3.30

511602

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th (Lindered) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

2001-ON

Steel Clutch Plate

3rd, 4th Lindered Coated

.095/2.41

511583

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th (Non-lindered) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

2001-ON

Steel Clutch Plate

3rd, 4th Non-lindered

.095/2.41

511582

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3-4 Ring Retainer Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

3rd, 4th Retainer

.048/1.22

511595

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward (Waved) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1994-ON

Steel Clutch Plate

Forward

.050/1.27

511586

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward (Waved) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1994-ON

Steel Clutch Plate

Forward

.140/3.56

511585

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward (.090") Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1985-ON

Steel Clutch Plate

Forward

.090/2.29

511609

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1984

Steel Clutch Plate

Forward

.078/1.98

511601

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward (Waved) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1984-1995

Steel Clutch Plate

Forward (Waved)

.069/1.75

511603

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward (Waved) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1995-ON

Steel Clutch Plate

Forward (Waved)

.070/1.78

511588

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward Apply Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1986

Steel Clutch Plate

Forward, Apply

.078/1.98

511608

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

Low, Reverse

.069/1.75

511554

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low, Reverse Overdrive (.079") Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

Low, Reverse (Oversize)

.079/2.01

511654

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse (Turbulated) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

Low, Reverse (Turbulated)

.069/1.75

511589

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse (Tabulated) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1990-ON

Steel Clutch Plate

Low, Reverse (Turbulated)

.089/2.26

511591

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse (Waved) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

Steel Clutch Plate

Low, Reverse (Waved)

.095/2.41

511598

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1990-ON

Steel Clutch Plate

Low, Reverse Select (Turbulated)

.047/1.19

511594

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1990-ON

Steel Clutch Plate

Low, Reverse Spacer

.089/2.26

511592

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

Steel Clutch Plate

Low, Reverse Spacer

.096/2.44

511630

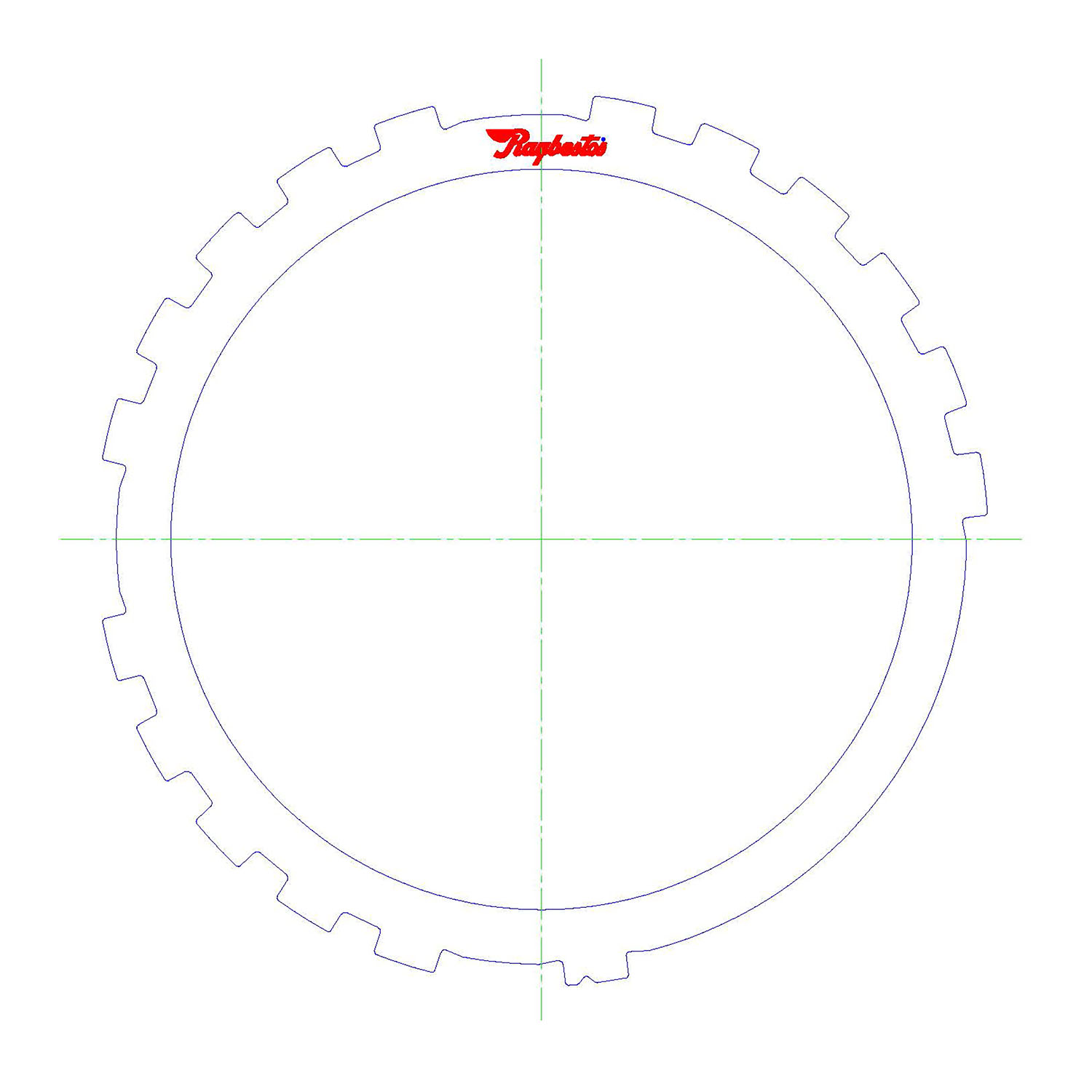

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1987-ON

Steel Clutch Plate

Low, Reverse Spacer

.125/3.18

511631

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1990-ON

Steel Clutch Plate

Low, Reverse Spacer

.049/1.24

511593

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Overrun Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

Overrun

.092/2.34

511607

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse (Flat) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

Reverse Input

.078/1.98

511605

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Input (.090") Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

Reverse Input

.088/2.24

511606

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Input Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1994-ON

Steel Clutch Plate

Reverse Input (Dished)

.050/1.27

511584

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Input (Turbulated) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1990-ON

Steel Clutch Plate

Reverse Input (Turbulated)

.077/1.96

511590

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse (Waved) Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Steel Clutch Plate

Reverse Input (Waved)

.080/2.03

511604

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3-4 late Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1993-ON

Kolene® Steel Clutch Plate

3rd, 4th Kolene® High Performance

.107/2.72

51K596

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3-4 Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1993

Kolene® Steel Clutch Plate

3rd, 4th, Kolene® High Performance

.078/1.98

51K599

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3rd, 4th Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1986

Kolene® Steel Clutch Plate

3rd, 4th, Kolene® High Performance

.068/1.73

51K600

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 3-4 Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Kolene® Steel Clutch Plate

3rd, 4th, Kolene® High Performance

.060/1.52

51K597

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1984

Kolene® Steel Clutch Plate

Forward Kolene® High Performance

.078/1.98

51K601

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Forward Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1985-ON

Kolene® Steel Clutch Plate

Forward, Kolene® High Performance

.090/2.29

51K609

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Low Reverse Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Kolene® Steel Clutch Plate

Low, Reverse Kolene® High Performance

.069/1.75

51K554

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Overrun Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Kolene® Steel Clutch Plate

Overrun Kolene® High Performance

.092/2.34

51K607

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E Reverse Kolene® Steel Clutch Plate

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

Kolene® Steel Clutch Plate

Reverse Input, Kolene® High Performance

.078/1.98

51K605

4L60E Transmission Bands

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 2nd, 4th Transmission Band

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-1992

2nd, 4th

Part No.

513842

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 2nd, 4th 2.2" Wide Pro-Series Transmission Band

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

2nd, 4th Pro Series (2.2" Wide)

Part No.

RPS77700

TH700-R4, 4L60, 4L60E, 4L65E, 4L70E 2nd, 4th 2.6" Wide Pro-Series Transmission Band

GM TH700-R4, 4L60, 4L60E, 4L65E, 4L70E

1982-ON

2nd, 4th Pro Series (2.6" Wide)

Part No.

RPS77765

4L60E Transmission Solenoid

4L60E Transmission Solenoid

1993-ON

1st, 2nd Shift; 2nd, 3rd Shift

Transmission Solenoid

Part No.

RES77945

4L60E Transmission Sprags & Roller Clutches

TH700-R4, 4L60, 4L60E Forward (Input) Roller Clutch

GM TH700-R4, 4L60, 4L60E

1987-ON

29-Element Steel Cage Forward (Input)

Part No.

200140

TH700-R4, 4L60, 4L60E Forward Input Roller Clutch

GM TH700-R4, 4L60, 4L60E

1982-1988

Forward Input

Part No.

200139

TH700-R4, 4L60, 4L60E Low Roller Clutch

GM TH700-R4, 4L60, 4L60E

1986-1996

TH700-R4, 4L60, 4L60E Low Roller, 16 Roller

Part No.

200138

4L60E Transmission Performance Rebuild Kits

4L60E Stage-1 Performance Transmission Super Rebuild Kit

1993-2003

Stage-1 Performance Transmission Super Rebuild Kit

RMCSKSG1K-087

4L60E Stage-1 Performance Transmission Super Rebuild Kit

1993-2003

Stage-1 Performance Transmission Super Rebuild Kit

RMCSKSG1-087

4L60E Transmission Rebuild Kits

4L60E Super Rebuild Kit

2004-ON

Super Rebuild Kit

Part No.

AZ74008GAP

4L60E Super Rebuild Kit

1997-2003

Super Rebuild Kit

Part No.

AZ74008ECP

4L60E Super Rebuild Kit

1997-2003

Super Rebuild Kit

Part No.

AZ74008EBP

4L60E Super Rebuild Kit

1993-1996

Super Rebuild Kit

Part No.

AZ74008EA

4L60E Master Rebuild Kit

2004-ON

Master Rebuild Kit

Part No.

AZ74004EC

4L60E/4L65E Master Rebuild Kit

1992-2003

Master Rebuild Kit

Part No.

AZ74004EZ

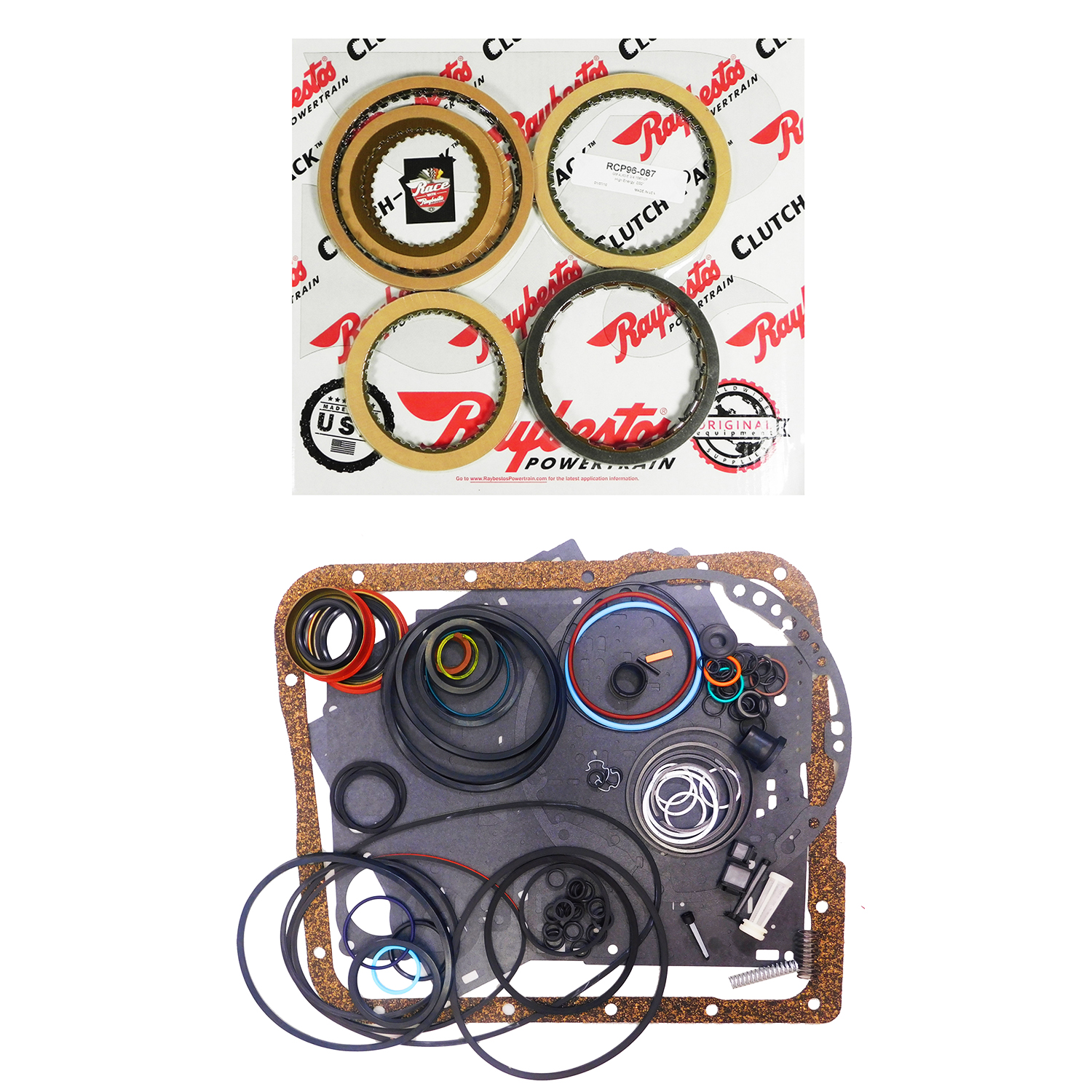

4L60E/4L65E Master Rebuild Kit

1992-04

Master Rebuild Kit

Part No.

AZ74004E

4L60E Torque Converter Components

4L60E Bearing, Partially Enclosed

298mm, ID 36.60mm, OD 72.10mm, Thickness 3.95mm (Pre-1984 Lock Up)

Bearing, Partially Enclosed

RTX10022

4L60E Bearing, Enclosed

298mm, ID 60.80mm, OD 83.05mm, Thickness 6.60mm (298mm 84-ON, 305mm RWD)

Bearing, Enclosed

RTX10016

298mm, Impeller, Height 2.000" (50.800mm), Outside Diameter 1.750" (44.450mm)

Hub

RGM90-2G

4L60E Bearing, Enclosed, Impeller

300mm, ID 65.99mm, OD 92.71mm, Thickness 4.84mm

Bearing, Enclosed, Impeller

RTX76838

4L60E Bearing, Enclosed

300mm, ID 66.20mm, OD 92.70mm, Thickness 3.90mm

Bearing, Enclosed

RTX10019

300mm, Impeller, Height 2.2253" (57.226mm), Outside Diameter 1.750" (44.450mm)

Hub

RGM90-13G

4L60E 298mm LU Carbon Friction Wafer

High Carbon, 11.125 X 10.000 X .045 (6-Stud)

Friction Wafer

R445250HC

4L60E Carbon Friction Wafer

High Carbon, 9.000 X 7.750 X .045

Friction Wafer

R445320HC

4L60E Carbon Friction Wafer

High Carbon, 9.000 X 7.750 X .075

Friction Wafer

R475320HC

4L60E Carbon Friction Wafer

High Carbon, 9.000 X 8.250 X .045 (Viscous Damper Only) (245mm)

Friction Wafer

R445310HC

4L60E Carbon Friction Wafer

High Carbon, 9.000 X 8.250 X .075 (Viscous Damper Only) (245mm)

Friction Wafer

R475310HC

4L60E Carbon Friction Wafer

High Carbon, 9.500 X 8.250 X .045 (258mm)

Friction Wafer

R445300HC

4L60E Carbon Friction Wafer

High Carbon, 9.500 X 8.250 X .075 (258mm)

Friction Wafer

R475300HC

TH200-4R 298mm LU Kevlar Friction Wafer

Kevlar, 11.125 X 10.000 X .045 (6-Stud)

Friction Wafer

R445250K

4L60E Kevlar Friction Wafer

Kevlar, 9.000 X 7.750 X .045

Friction Wafer

R445320K

4L60E Kevlar Friction Wafer

Kevlar, 9.000 X 7.750 X .075

Friction Wafer

R475320K

4L60E Kevlar Friction Wafer

Kevlar, 9.000 X 8.250 X .045 (Viscous Damper Only) (245mm)

Friction Wafer

R445310K

4L60E Kevlar Friction Wafer

Kevlar, 9.000 X 8.250 X .075 (Viscous Damper Only) (245mm)

Friction Wafer

R475310K

4L60E Kevlar Friction Wafer

Kevlar, 9.500 X 8.250 X .045 (258mm)

Friction Wafer

R445300K

4L60E Kevlar Friction Wafer

Kevlar, 9.500 X 8.250 X .075 (258mm)

Friction Wafer

R475300K

4L60E PowerTorque Friction Wafer

Power Torque, 9.000 X 7.750 X .066

Friction Wafer

R466320PT

4L60E PowerTorque Friction Wafer

Power Torque, 9.000 X 8.250 X .066 (Viscous Damper Only) (245mm)

Friction Wafer

R466310PT

4L60E PowerTorque Friction Wafer

Power Torque, 9.500 X 8.250 X .066 (258mm)

Friction Wafer

R466300PT

4L60E 298mm LU Tan Friction Wafer

Tan, 11.125 X 10.000 X .045 (6-Stud)

Friction Wafer

R445250T

4L60E Tan Friction Wafer

Tan, 9.000 X 7.750 X .045

Friction Wafer

R445320T

4L60E Tan Friction Wafer

Tan, 9.000 X 7.750 X .075

Friction Wafer

R475320T

4L60E Tan Friction Wafer

Tan, 9.000 X 8.250 X .045 (Viscous Damper Only) (245mm)

Friction Wafer

R445310T

4L60E Tan Friction Wafer

Tan, 9.000 X 8.250 X .075 (Viscous Damper Only) (245mm)

Friction Wafer

R475310T

4L60E Tan Friction Wafer

Tan, 9.500 X 8.250 X .045 (258mm)

Friction Wafer

R445300T

4L60E Tan Friction Wafer

Tan, 9.500 X 8.250 X .075 (258mm)

Friction Wafer

R475300T

4L60E Carbon - C9 Friction Wafer

TechniTorq C9, 9.000 X 7.750 X .038

Friction Wafer

R438320C9

4L60E 298mm LU PWM - F7 Friction Wafer

TechniTorq F7, 11.125 X 10.000 X .045 (6-Stud)

Friction Wafer

R445250PW

4L60E PWM - F7 Friction Wafer

TechniTorq F7, 9.000 X 7.750 X .045

Friction Wafer

R445320PW

4L60E PWM - F7 Friction Wafer

TechniTorq F7, 9.000 X 7.750 X .075

Friction Wafer

R475320PW

4L60E PWM - F7 Friction Wafer

TechniTorq F7, 9.000 X 8.250 X .045 (Viscous Damper Only) (245mm)

Friction Wafer

R445310PW

4L60E PWM - F7 Friction Wafer

TechniTorq F7, 9.000 X 8.250 X .075 (Viscous Damper Only) (245mm)

Friction Wafer

R475310PW

4L60E PWM - F7 Friction Wafer

TechniTorq F7, 9.500 X 8.250 X .045 (258mm)

Friction Wafer

R445300PW

4L60E PWM - F7 Friction Wafer

TechniTorq F7, 9.500 X 8.250 X .075 (258mm)

Friction Wafer

R475300PW

4L60E Transmission Tech Resources

RZP-001 ZPak | 3-4 Clutch Installation Instructions >>

4L60E Exploded View

4L60E Exploded View

4L60E Transmission Parts

Clutch Packs Filters Clutches Bands Solenoids Sprags Kits Converter

Where to Buy

Dedicated to Innovation
