10R80 Transmission

The 10R80 transmission is a 10-speed longitudinal automatic transmission that was designed to improve high-horsepower engine fuel economy in various Ford vehicles including the Mustang, F-150, Bronco, and Ranger. The 10R80 was conceived in a collaboration between Ford and GM and was initially introduced in the 2017 F-150. Engine power is improved during acceleration with miniscule gear ratio steps, while fuel efficiency is improved by a wide gear ratio that lowers the engine speed when the vehicle reaches speeds above 60 mph.

10R80 Transmission Specs

Class: 10-speed

Production: 2017 - Present

Predecessor: 6R80

Torque Converter: 260 mm

Gear Ratios:

1st - 4.7, 2nd - 2.99, 3rd - 2.15, 4th - 1.8, 5th - 1.52, 6th - 1.28, 7th - 1, 8th - .85, 9th - .69, 10th - .64, Reverse - 4.87

View Clutch Clearances >>

10R80 Transmission Parts

Clutch Packs Filter Clutches Rebuild Kit

10R80 Transmission Clutch Packs

FORD 10R80

2017-ON

Performance

E Clutch GPZ Torqkit Clutch Pack

Contents:

(6) GPZ Frictions, (7) 15 Tooth Steels, (1) .101 Selective Steel

RTK-10R85

View

FORD 10R80

2017-ON

Performance

GPZ Friction Clutch Pack Module

Contents:

3 A Clutch, 5 B Clutch, 5 C Clutch, 6 D Clutch, 5 E Clutch, 4 F Clutch

RGPZ-268

View

FORD 10R80

2017-ON

Performance

GEN 2 Blue Plate Special® Friction Clutch Pack Module

Contents:

3 A Clutch, 5 B Clutch, 5 C Clutch, 6 D Clutch, 5 E Clutch, 4 F Clutch

RCPBP-48

View

10R80 High Energy Stock Friction Clutch Pack

Ford 10R80

2017-ON

Friction Clutch Pack Module

Contents:

(3) A Clutch - R500155, (5) B Clutch - R500160, (5) C Clutch - R500165, (6) D Clutch - R500170, (5) E Clutch - R500175, (4) F Clutch - R500180

RCP96-523

View

FORD 10R80

2017-ON

Steel Clutch Pack Module

Contents:

2 A Clutch, 1 A Clutch Bottom , 4 B Clutch, 1 B Clutch Bottom, 5 C Clutch, 6 D Clutch, 4 E Clutch, 1 E Clutch Top, 1 E Clutch Bottom, 4 F Clutch

STMFORD17

View

10R80 Transmission Filter

FORD 10R80

2017-ON

Transmission Filter

515280

View

10R80, 10R60 Pump Cartridge Transmission Filter

FORD 10R80, 10R60

2017-ON

Transmission Filter

515281

View

10R80 Transmission Filter Kit Premium Filter & Gasket Kit

FORD 10R80

2017-ON

Shift-Pro Filter Kit

997280

View

10R80 Transmission Clutches

10R80, 10L80, 10L90 GEN 2, Blue Plate Special Friction Clutch Plate

FORD / GM 10R80, 10L80, 10L90

2017-ON

GEN 2, Blue Plate Special

A Reverse (1-2-3-4-5-6) Gen2 (10L80, 10L90 18-ON)

.070/1.78

R577401

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GEN 2, Blue Plate Special

B Reverse (1-2-8-9-10) Gen2 (10L80, 10L90 18-ON)

.069/1.75

R577406

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GEN 2, Blue Plate Special

C Direct (2-3-4-5-7-9-10) Gen2 (10L80, 10L90 18-ON)

.084/2.13

R577411

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GEN 2, Blue Plate Special

D Low (1-2-3-4-6-7-8-10) Gen2

.064/1.63

R577416

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GEN 2, Blue Plate Special

E Forward (1-3-5-6-7-8-9) Gen2

.082/2.08

R577421

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GEN 2, Blue Plate Special

F High (4-5-6-7-8-9-10) Gen2

.083/2.11

R577426

View

10R80, 10L80, 10L90 GPZ Friction Clutch Plate

FORD / GM 10R80, 10L80, 10L90

2017-ON

GPZ

A Reverse (1-2-3-4-5-6) GPZ (10L80, 10L90 18-ON)

.070/1.78

GPZ675

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GPZ

B Reverse (1-2-8-9-10) GPZ (10L80, 10L90 18-ON)

.069/1.75

GPZ680

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GPZ

C Direct (2-3-4-5-7-9-10) GPZ (10L80, 10L90 18-ON)

.084/2.13

GPZ685

View

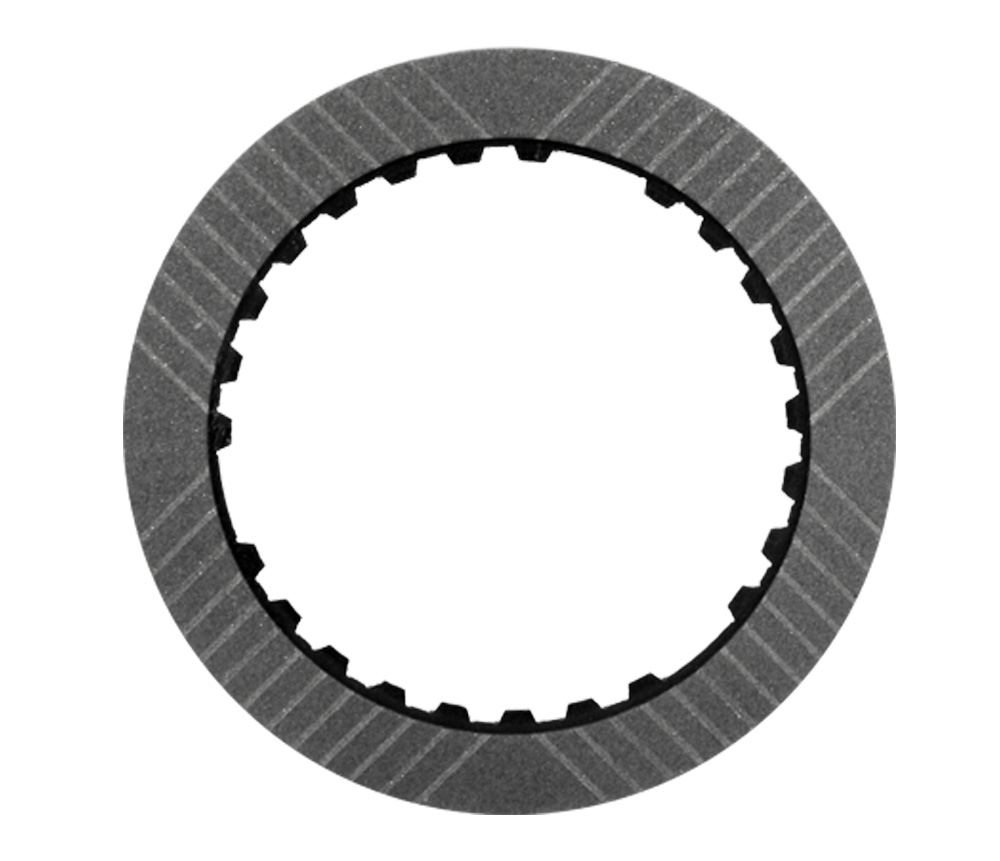

FORD / GM 10R80, 10L80, 10L90

2017-ON

GPZ

D Low (1-2-3-4-6-7-8-10) GPZ

.064/1.63

GPZ690

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GPZ

E Forward (1-3-5-6-7-8-9) (Waved) GPZ

.082/2.08

GPZ695

View

FORD / GM 10R80, 10L80, 10L90

2017-ON

GPZ

F High (4-5-6-7-8-9-10) GPZ

.083/2.11

GPZ700

View

10R80, 10L80, 10L90 A Reverse (1-2-3-4-5-6) High Energy Friction Clutch Plate

FORD / GM 10R80, 10L80, 10L90

2017-ON

High Energy

A Reverse (1-2-3-4-5-6)

.070/1.78

R500155

View

10R80, 10L80, 10L90 B Reverse (1-2-8-9-10) High Energy Friction Clutch Plate

FORD / GM 10R80, 10L80, 10L90

2017-ON

High Energy

B Reverse (1-2-8-9-10)

.069/1.75

R500160

View

10R80, 10L80, 10L90 C Direct (2-3-4-5-7-9-10) High Energy Friction Clutch Plate

FORD / GM 10R80, 10L80, 10L90

2017-ON

High Energy

C Direct (2-3-4-5-7-9-10)

.084/2.13

R500165

View

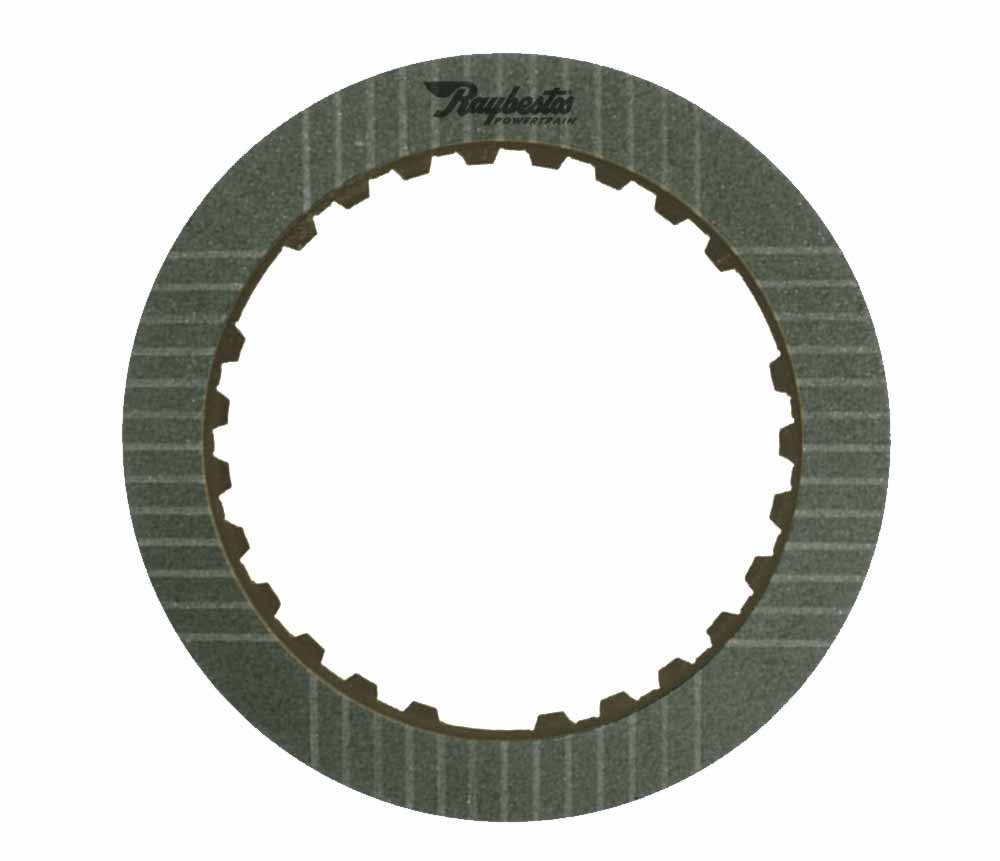

10R80, 10L80, 10L90 D Low (1-2-3-4-6-7-8-10) High Energy Friction Clutch Plate

FORD / GM 10R80, 10L80, 10L90

2017-ON

High Energy

D Low (1-2-3-4-6-7-8-10)

.064/1.63

R500170

View

10R80, 10L80, 10L90 E Forward (1-3-5-6-7-8-9) (Waved) High Energy Friction Clutch Plate

FORD / GM 10R80, 10L80, 10L90

2017-ON

High Energy

E Forward (1-3-5-6-7-8-9) (Waved)

.082/2.08

R500175

View

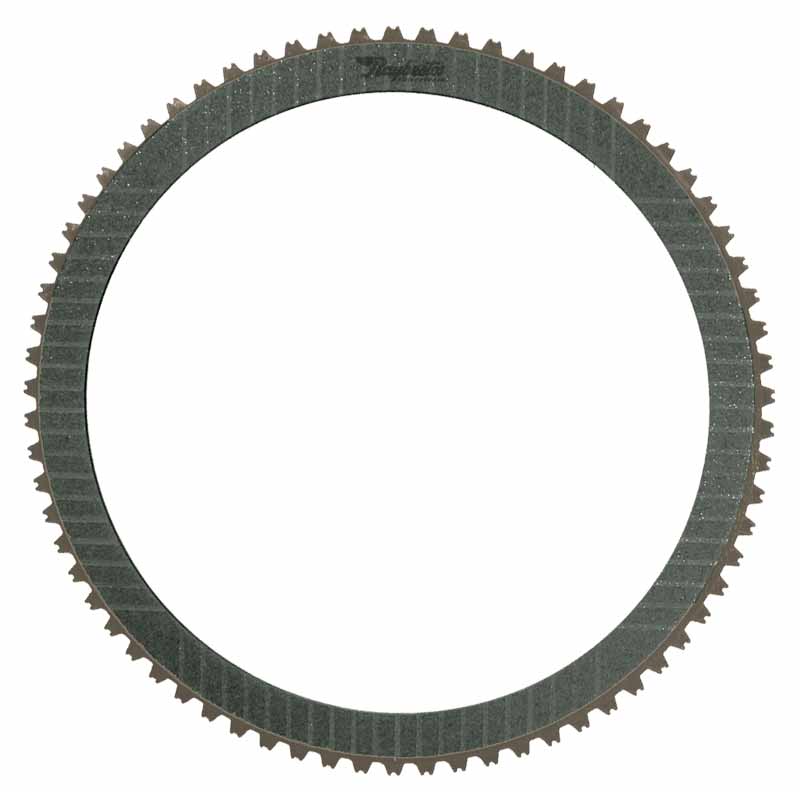

10R80, 10L80, 10L90 F High (4-5-6-7-8-9-10) High Energy Friction Clutch Plate

FORD / GM 10R80, 10L80, 10L90

2017-ON

High Energy

F High (4-5-6-7-8-9-10)

.083/2.11

R500180

View

FORD 10R80

2017-ON

Steel Clutch Plate

'A', Reverse Brake (Bottom)

.187/4.75

5111191

View

FORD 10R80

2017-ON

Steel Clutch Plate

'A', Reverse Intermediate Clutch

.080/2.03

5111190

View

FORD 10R80

2017-ON

Steel Clutch Plate

B, Overdrive (1-2-8-9-10)

.099/2.51

5111192

View

FORD 10R80

2017-ON

Steel Clutch Plate

B, Reverse Brake (Bottom)

.157/3.99

5111193

View

FORD 10R80

2017-ON

Steel Clutch Plate

C Clutch

.143/3.63

5111194

View

FORD 10R80

2017-ON

Steel Clutch Plate

D Clutch (Low)

.067/1.70

5111195

View

FORD 10R80

2017-ON

Steel Clutch Plate

E, Bottom Steel, Forward

.117/2.97

5111198

View

FORD 10R80

2017-ON

Steel Clutch Plate

E, Forward

.138/3.51

5111196

View

FORD 10R80

2017-ON

Steel Clutch Plate

E, Top Steel, Forward

.109/2.77

5111197

View

FORD 10R80

2017-ON

Steel Clutch Plate

F Clutch (High)

.088/2.24

5111199

View

10R80 Transmission Rebuild Kit

10R80 GPZ Performance Transmission Super Rebuild Kit

Ford 10R80

2017-UP

GPZ Performance Transmission Super Rebuild Kit

RMCSKGPZ-198

View

10R80 Transmission Performance

The 10R80 transmission has been put to the test on the drag strip time and time again since it's appearance in the 2018 Ford Mustang. Stock clutch failure has been a common occurrence as horsepower has been increased and the limits have been pushed. Raybestos Powertrain is proud to have been first to market in 2019 with the first set of 10R80 performance clutches. GPZ friction clutches have proven to handle increased horsepower and have helped produce dozens of under 9 second quarter mile track times. We look forward to the future of 10R80 transmissions on the drag strip as we continue to develop new products for even faster track times.

10R80 Transmission Clutch Clearances

The following data is provided to aid in the reassembly of the 10R80 transmission. It is critical that the clutch clearances are adjusted during reassembly. Due to the variability within the transmission it is necessary that all clutch packs are measured and proper clearances are obtained. The following information provides assistance in the specifications and part numbers for selective parts to help achieve the proper clearances for each clutch pack. It is also imperative that codes are cleared and a re-learn and drive cycle is performed according to Ford procedures. Download PDF>>

10R80 Transmission Selective Parts

10R80 Transmission A Clutch Selective Apply Plate Chart

10R80 Transmission A Clutch Selective Apply Chart

a. The target clearance with the correct selective apply plate installed is between 0.026–0.058 in (.67–1.47 mm).

10R80 Transmission B Clutch Selective Snap Ring Chart
Part Number | Snap Ring Thickness
HL3P-7M157-AA | 0.089–0.093 in (2.25–2.35 mm)
HL3P-7M157-BA | 0.100–0.104 in (2.55–2.65 mm)
HL3P-7M157-CA | 0.112–0.116 in (2.85–2.95 mm)
HL3P-7M157-DA | 0.124–0.128 in (3.15–3.25 mm)
HL3P-7M157-EA | 0.136–0.140 in (3.45–3.55 mm)
HL3P-7M157-FA | 0.148–0.152 in (3.75–3.85 mm)

10R80 Transmission E Clutch Selective Pressure Plate Chart
Part Number | Pressure Plate Thickness
HL3P-7B066-AA | 0.083–0.087 in (2.1–2.2 mm)
HL3P-7B066-BA | 0.094–0.098 in (2.4–2.5 mm)
HL3P-7B066-CA | 0.106–0.110 in (2.7–2.8 mm)
HL3P-7B066-DA | 0.118–0.122 in (3–3.1 mm)
HL3P-7B066-EA | 0.130–0.134 in (3.3–3.4 mm)
HL3P-7B066-FA | 0.142–0.146 in (3.6–3.7 mm)

10R80 Transmission Clutch Application Chart

• H = Holding
• D = Driven
• O/R = Overrunning
Applied to reduce frictional losses from a released clutch, but does not contribute to power flow.
